For grounding or even for power draw the usage of copper lugs is beneficial. By soldering or crimping each wire can be attached to a copper lug. Based on the type of lug any end of the copper lugs can be soldered , wielded or crimped. The other end with the help of a bolt, screw or clip can be used to secure a termination of the copper lug.
COPPER LUGS MANUFACTURER
Our Copper Lugs Sizes & Price
-
Copper Tubular Cable Terminal Ends Heavy Duty - XLPE Cables
-
Copper Tubular Cable Terminal Ends (Without Inspection Hole ) Heavy Duty
-
Copper Tubular Cable Terminal Ends Light Duty XLPE Cables
-
Copper Tubular Cable Terminal Ends Bell Mouth Type
-
Compression Cable Terminal Ends N - Series
-
Compression Copper Tubular Connectors Long Barrel (As per DIN 46235) - 33KV
What exactly are Copper Lugs?
electrical lugs are clamps or connectors that are used to connect two or more electrical devices. When there is a hindrance in the supply and distribution of electric current in cables electrical lugs are used so that a permanent connection can be established when it is not possible. There are different kinds of electrical lugs that differ in size, configuration, use, shape, and materials.
The use of cable lugs varies from industry to industry.
Copper lugs are electrical components that are effectively used to join wires with other electrical gadgets. There are two ends to a copper lug, one end is used to accommodate the cable which is done by crimping or soldering and the other end of the copper lug is attached to a terminal fastened with bolts and screws. Pioneer Powers International is the leading copper lugs manufacturer in the country, delivering excellence since 2001.
Not just copper lugs, Pioneer Powers International is also the industry leader in producing Aluminium Lugs, Earthing and Lightning Protection, Copper Bonded Earth Rod, etc.
Pioneer Powers International, regarded as the best copper lugs manufacturers, operates within the country but also has an international presence in countries such as the UK, the USA, Abu Dhabi, Singapore, South Africa, Kuwait, and Oman (Muscat), Poland, etc.

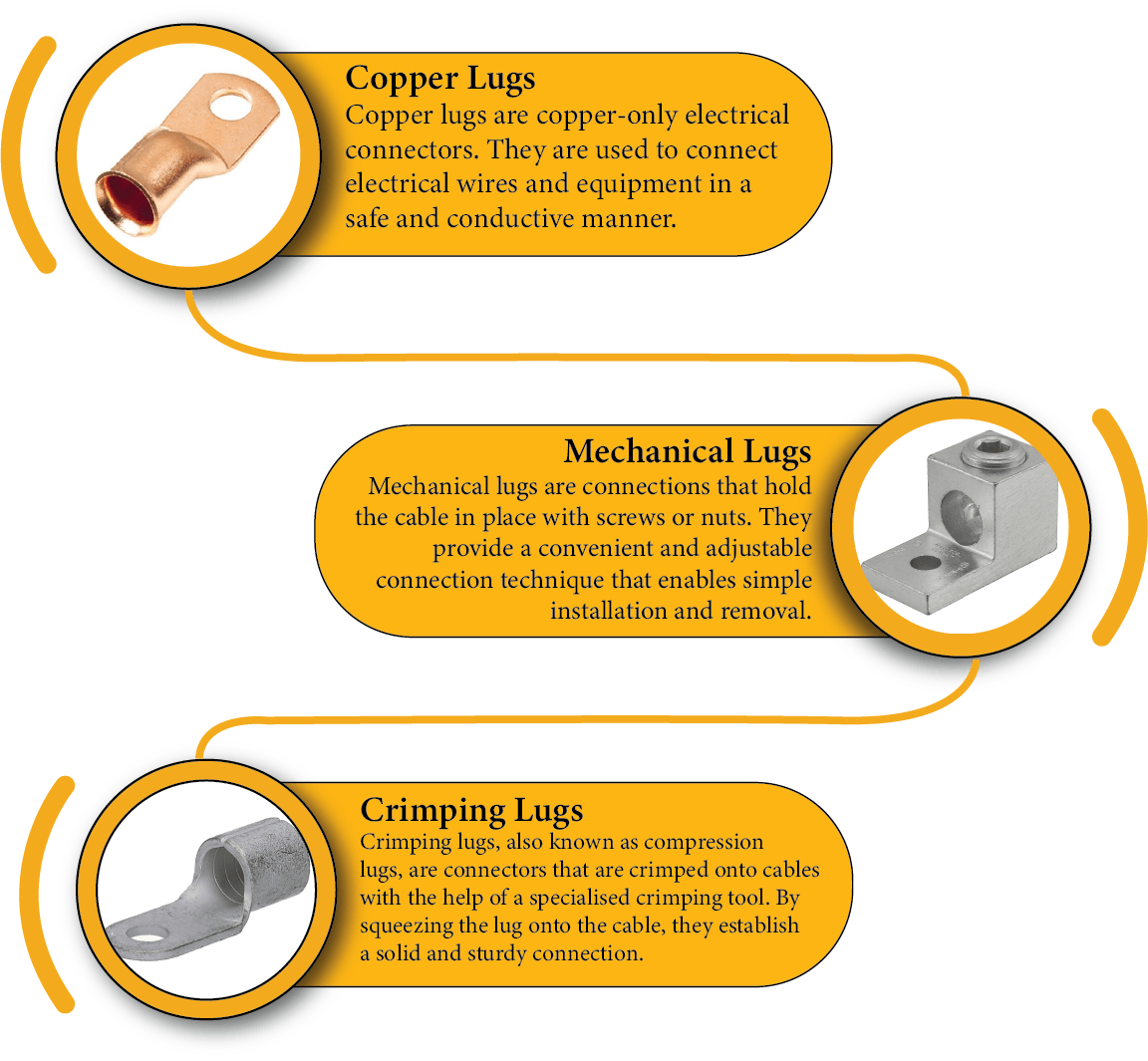

Classification of Various Types of Lugs & Copper Lugs:
There are various Types of lugs available in the market. Pioneer Powers provide the finest type of lugs and copper lugs so that our customers can get the best products. We promise to deliver valued products to our customers. So that they can come over for their next purchase. We have a wide variety of lugs so that you don't have to sneak into other places to buy one.
Copper Lugs:
Crimping Lugs:
With the help of crimping any one side of the metal could be easily deformed so that it is held in another place. The bend that occurred due to deformity is called crimp. To establish connection between machinery these lugs are used as connectors.
For example crimping lugs have the clamps that make connection of wire possible to an automobile battery and successfully terminate battery jumper cables.
They have been widely used for usage in areas such as automobile wire systems, electrical boxes, machinery, household appliances, electronics, and other durable goods.
Make sure while using any electrical appliances these lugs are protected with rubber or plastic. When electrical appliances are protected with rubber or plastic, they prevent accidental tragedy to people or neighbouring electrical components as they are bad conductors of electricity.
Mechanical Lugs:
For cable conductors, mechanical lugs are the best fit because of their cutting-edge technology. They make use of shear-off bolted connectors where the bolt head is sheared off at a predetermined torque.
So these shear bolts and connectors are made up of specific alloys which enhance them to perform their function with ease.
There is a variety of palm hole-size lugs suitable for both inside and outside performance. We also have variations in the voltages that you can buy: low-voltage, medium-voltage, and high-voltage. So choose as per your need.

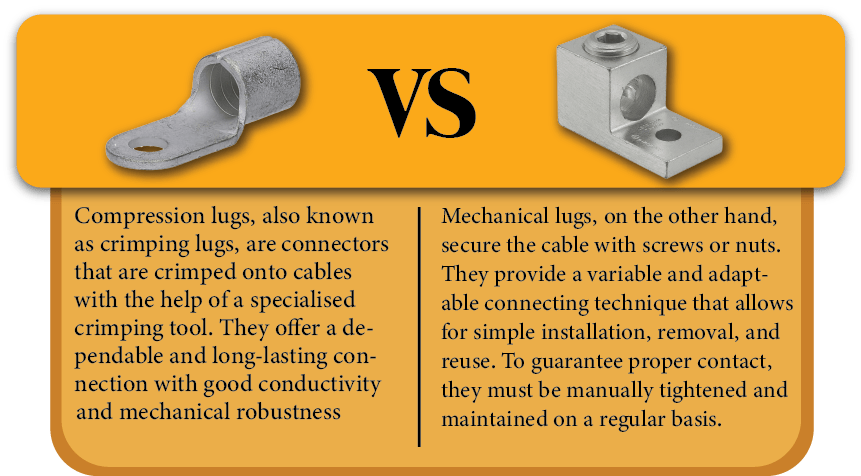

Compression Lugs VS Mechanical Lugs:
So the common difference between both lugs is that compression lugs are suitable for small electrical works and mechanicals for towers or large commercial cables. Mechanical lugs are much taller than compression lugs.
Mechanical lugs are used in autos as they consist of cable wires that make use of large wires. Compression lugs are mostly used where wire connectors are in need and can be seen in residences and small business infrastructures.
Features & Characteristics of Various Types of Lugs & Copper lugs:
Each lug has its salient feature which differentiates it from the rest of the lugs. Now that you are aware of the different types of lugs let’s pay heed to the top 5 features to look for in high-quality copper lugs.
- In order to enter the wire barrel there is a mechanical pull-out test & electrical durability test. The portions which can be shockproof are bell mouthed and then allow insertion of the conductors.
- The cable lugs are made to pass through high-current tests at temperatures of 250°C. Only when the test is passed, we come to conclude that it has the capacity to provide optimal conductivity, high loading capacity, and increased safety resulting in a great quality product.
- Further, flat contact surfaces are made for safer connectivity making it simple to function. Then only copper lugs are annealed for better crimping improving the material property.
- All copper items adhere to BS specifications as they are electro-tinned which enables corrosion and oxidation. Other than that, the terminals protected with PVC give extraordinary dielectric strength and support.
- In addition to this, copper tube dimensions are customised as per the required specification Sq.mm of cable , assuring that it survives vibration and pull-off with its electrical conductivity and mechanical strength.
Lugs – Types, Applications and Features:
Now that you know about different types and features of lugs let us know the application of different Types of Lugs:
With the help of cable lugs, the installation, repair and maintenance of electrical devices are made easy.
So firstly either of the two takes place: two wires are interlinked or else join more than two wires. Plus, there is a connection of fuse sockets, load switches, and electrical equipment.
Insulated lugs along with pin terminals, blade terminal hook terminals, ring terminals, fork terminals are in the wire, control panel, automation and instrumentation industries.
Copper ring-type lugs are used for various purposes as it connects to various gadgets with cables. It is made sure that any lugs that are manufactured are tested before their application so that no harm is done to its users.
Lugs are made to use for connecting distribution boxes and transformers to cables. Other than that, motors, generators, batteries and many other electrical components also make use of it. Especially talking about control panel cubicles, it is used to terminate flexible control wires to blocks, connectors and meters.
USES OF COPPER LUGS
Copper lugs are used for a variety of purposes the main use of which is to attach cables with electrical appliances. They are devices that transfer electricity between two or more electrical cables. Copper lugs have the finest electrical performance, making them ideal for high-voltage applications. Let us take a look at what are the common uses of Copper Lugs:
- Copper lugs are best suited for large gauge applications for power draw and grounding.
- Copper Lugs are used in power cable systems and electronic devices
- With the advantage of safety, they are also used in fuse sockets, power circuits, switches, etc.
- Used to reduce the diameter of a thick cable so that it can be attached to a cable having a smaller diameter.
The following are some of the different places where a copper lug is commonly used:
- Power Distribution Cabinets
- Shipyards
- Household Appliances
- Metal Processing
- Mechanical Equipment Factories
- Production Processes
- Electrical Equipment Factories
Different Types of Copper Lugs at Pioneer Powers International:
Different kinds of copper lugs can be required for different kinds of situations and electrical appliances. We at Pioneer Powers International provide a variety of Copper Lugs that suit your needs. Because we pride ourselves on providing high-quality items, you can be confident that you will receive the most value for your money. E-Copper is used to make all of the Copper Lugs that we provide. E-Copper is a form of copper with high conductivity, i.e. the capacity to transmit a large amount of electrical current, as well as relatively high corrosion resistance, suggesting that it has a strong resistance to harmful substances that might damage the product.
The different types of copper lugs available with Pioneer Powers International include the following:
- Copper Tubular Cable Terminal Ends Heavy Duty with XLPE Cables
- Copper Tubular Cable Terminal Ends Heavy Duty 4 Hole Type
- Compression Copper Tubular Connector Long Barrel (DIN 46235)
- Copper Tubular Cable Terminal Ends (Without Inspection Hole ) Heavy Duty
- Copper Tubular Cable Terminal Ends Bell Mouth
BENEFITS OF COPPER LUGS:
Copper Lugs have more significant advantages over their counterparts. Copper Lugs have a lower coefficient of thermal expansion, which means that the fractional change in size per degree of temperature change at steady pressure is smaller. Simply said, Copper Lugs are less likely to catch fire and are thus safer to use. They are structured in a way that cable termination, repair, and removal are a super easy process. With the Copper Lugs from Pioneer Powers, you can be rest assured that you get the products of top-notch quality from the most trusted brands.
Copper Lugs by Pioneer Powers International
The finest site to acquire electrical items and accessories is Pioneer Powers International. We have a reputation for developing high-quality, high-tech items that meet international requirements. With an ISO:9001: 2015 TQM certification, we are recognized as a Copper Cable Lugs manufacturer. With over 2 decades of trust, we make sure to give the finest to our clients and customers and assure prompt delivery and efficient after sales services. Regarded as one of the most trusted copper lugs manufacturers, with a clientele inclusive of BHEL, SDC, Indian Petrochemicals Corporation Ltd., BGR Energy, Southern Railways, Crompton Greaves, etc. we believe in providing quality materials so as to provide the maximum efficiency and effectiveness of your electrical appliances. If you have any queries about our Copper Lugs you can reach out to us anytime and it will be our pleasure to assist you.
Frequently Ask Questions (FAQs)
- What are copper lugs used for?
- Why do we need lugs?
- What type of copper is used in cables?
- Are copper lugs standard?
- What are the benefits of using copper lugs over other types of lugs?
- How to choose the right size and type of copper lug for your electrical project?
- How to maintain and care for copper lugs to ensure long-lasting performance?
Copper lugs are primarily used for grounding and power draw fit for large guage applications, also suitable for electronic devices such as fuse, sockets, switches, etc.
We need cable lugs because it makes the process of installation, repair and maintenance of electrical cables or devices easy.
Pure copper or Electrolytic copper is used in cables to maximise conductivity and give 100% outcome.
Indeed, pioneer powers do have DIN-46235 which is a standard that indicates the dimension, application and designation of compression cable lugs i.e Copper Tubular Terminal Lugs
Whatever problems that are encountered in aluminium lugs are resolved in copper lugs. It also provides high safety which is a bit less when compared to aluminium lugs.
Look into the requirements of the desired cable lugs. The size and type of the copper lug depend on the conductor class plus the standard which needs to be matched with the required electrical material.
Make sure that the copper lug is well-cleaned and not soiled due to dust or any damage. Do not ignore dust which has settled and make sure to swipe it properly.
