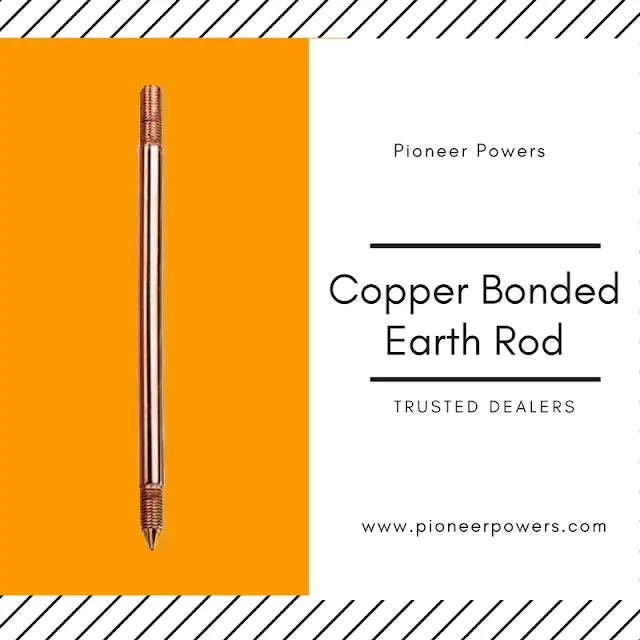

Copper Bonded Earthing Rod - Threaded & Unthreaded are available

Pioneer Powers International is well-known for its devotion to quality and innovation in electrical components, as proven by their Copper Bonded Earthing Rod.

What is a copper bonded earthing rod? A copper-bonded earthing rod is a form of grounding electrode used in earthing systems to provide a low-resistance conduit for fault currents to safely discharge into the ground. These rods are normally composed of high-quality steel that has been coated with copper using a process known as electrolytic deposition. A copper bonded earthing rod consists of a high carbon steel core coated with nickel and copper, offering superior conductivity and corrosion resistance for efficient earthing.

The copper coating bonded to the steel rod increases the rod's conductivity and corrosion resistance, making it ideal for earthing applications. The copper coating ensures that the earthing rod's resistance remains consistently low over time, even in adverse weather circumstances.

Copper-bonded earthing rods are widely utilized in a variety of industries, including electrical distribution, telecommunications, and industrial applications, where reliable earthing is critical to safety and equipment protection. Their durability, conductivity, and corrosion resistance make them an excellent choice for grounding systems, providing long-term and effective protection against electrical problems.




Specifications in Copper Bonded Earthing Rods - From 7mm to 25mm all sizes are available

They are composed of low-carbon, high-strength steel with a layer of copper attached to its surface. They have threaded ends for simple installation and are available in a range of diameters (often 14 to 25 mm) and lengths (1 to 3 meters). The copper layer offers superior conductivity and resistance to corrosion; it is usually 250–300 microns thick. Conforming to global standards including IEEE 80, IEC 62561, UL 467, and BS 7430, these rods provide dependability and security in grounding systems.

Copper Bonded Earthing Rods , available in threaded and unthreaded variants, are an essential component in electrical grounding systems. Manufactured from high tensile low carbon steel and molecularly bonded with 99.9% pure electrolytic copper, these earth rods adhere to BS 4360 grade 43A standards. Treated with Benzol triozole derivatives to prevent copper oxidation, these rods ensure durability and longevity in various soil conditions.

Threaded variants are crafted through a roll threading process, ensuring strength and maintaining molecularly bonded copper along the entire length of the threads. These rods can be manually driven deep into the ground or by using power hammers. Coupling extensible earth rods with threaded brass alloy couplings simplifies installation, enabling connections through bolted clamps or the exothermic welding process. Sizes ranging from 7mm to 25mm are readily available to meet diverse requirements.

Understanding the Earthing Process
Before delving into the specifics of copper boned earthing rods, it's essential to grasp the earthing process's fundamentals. Earthing involves transferring electrical energy charges to the earth via low-resistance wires, ensuring equal distribution of charges within the soil. This process prevents current leakage and safeguards electrical appliances, enhancing safety for individuals and equipment alike.


Exploring Copper Bonded Earthing Rods

Copper Bonded Earthing Rods play a pivotal role in establishing efficient earthing systems, particularly in overhead and underground electricity distribution and transmission networks. These rods facilitate ground contact in various soil conditions, including high voltage towers and power distribution channels. With a low-carbon steel core and 99.9% pure electrolytic copper construction, they offer superior mechanical tensile strength and corrosion resistance compared to solid copper or stainless-steel rods.



Key Features of Copper Bonded Earth Rods

  1. Copper bonding improves corrosion resistance, ensuring longevity even in harsh soil conditions.
  2. The electroplating process molecularly bonds copper and steel cores, maintaining integrity even when driven deep into the ground.
  3. Specifically designed for improved conductivity and fault current excess, these rods offer enhanced safety and performance.
  4. Suitable for various industries, including substations and factories, where efficient fault current management is essential.

Benefits of Copper Bonded Earthing Rods over Galvanized Rods:

  1. Copper Bonded Earthing Rods offer better conductivity compared to galvanized iron rods, ensuring efficient grounding.
  2. Pure copper construction provides excellent corrosion resistance, outperforming galvanized iron rods prone to corrosion.
  3. The electrolytic process used in copper bonding ensures high strength, durability, and resistance to corrosion, making them ideal for long-term use.
  4. With high mechanical strength, copper bonded rods simplify the installation process, offering greater convenience and reliability.
  5. While slightly more expensive initially, copper bonded earthing rods offer long-term cost savings due to their extended lifespan and minimal maintenance requirements.
