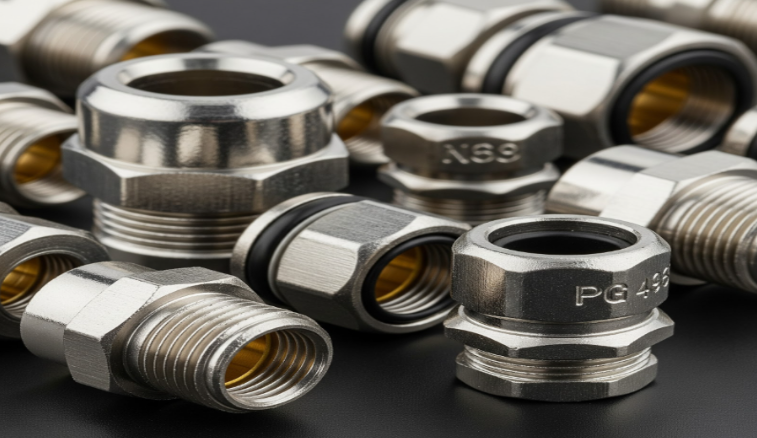

Why Are Nickel Plated Brass Cable Connectors Essential for Long-Lasting Industrial Safety?

Electrical installations in modern industrial applications must meet high standards of integrity. While cables carry the power, the components that secure them are often the unsung heroes of safety. Brass Cable Connectors have gained popularity mainly because of their strength and durability; however, an additional layer of protection in the form of nickel plating takes them to a whole new level.
Knowing the importance of these components can make a difference between a reliable connection and an expensive breakdown for engineers and facility managers.

The Critical Role of Nickel Plating

You might ask, why is the finish so important? Despite the fact that raw brass is resistant to wear and tear, the industrial environment can be very harsh. Nickel plated brass cable glands provide excellent protection against the environmental factors.

Key Benefits of Nickel Plating:

Enhanced Corrosion Resistance:It prevents oxidation, making the gland suitable for humid or corrosive environments.

Increased Hardness:The plating adds a layer of physical protection against scratches and wear.

Thermal Stability: It maintains structural integrity even under fluctuating temperatures.

Maximizing Safety with Double Compression Brass Connectors

The standard connection is usually not enough when working with armored cables in danger zones. This is where the double compression brass connectors become essential. Often available as high-grade Nickel plated Brass Cable Connectors, these components are designed to withstand extreme conditions.
The double compression design delivers a seal on both the outer and inner sheaths of the cable, as opposed to the single compression glands, which only seal the outer sheath. This dual-action sealing mechanism effectively blocks all moisture, gas, and dust from entering the enclosure, thus minimizing the chance of electrical faults significantly. In case your plant is located in areas where safety is paramount, opting for double compression technology in Nickel plated Brass Cable Connectors is the best choice.

Understanding the Variants: BW and CW Cable Glands

The choice of the appropriate connector is also influenced by the specific type of cable armor being used. Whether you are selecting standard finishes or premium Nickel plated Brass Cable Connectors, the bw cable gland and the cw cable gland are probably the most common specifications that you will come across.

1. BW Cable Gland

They are usually used for steel wire armored (SWA) cables located indoors. They hold the armor tight but do not give a waterproof barrier. They are perfectly suited for dry and controlled environments where moisture ingress is not considered a major problem.

2. CW Cable Gland

In contrast, the cw cable gland is for outdoor and indoor applications. It provides protection by sealing the outer sheath so that higher moisture levels do not get through. If your installation or equipment is outdoors, a CW gland guarantees that water and dust do not enter, maintaining the IP rating of your equipment. Many outdoor projects specifically specify Nickel plated Brass Cable Connectors in the CW variant to ensure long-term resistance against weather-induced corrosion.

Finding the Right Fit: Brass Cable Glands Sizes

Safety is not just about the material; it is also about the fit. If you use the wrong size, you may end up compromising the ingress protection (IP) rating of your complete system.
Brass cable glands sizes, including those for Nickel plated Brass Cable Connectors, vary widely to accommodate different cable diameters. You may want a standard M20 fitting or a larger industrial size, but accuracy is the most important factor in both cases. If the gland is loose, contaminants will come in, and if it is tight, the cable insulation will be damaged. Always use the manufacturer's selection chart to find out the gland size that corresponds to the overall diameter of your cable.

Trust Pioneer Power International for Your Connections

Good connections are the main contributors to the safety of your electrical infrastructure. From robust double compression brass connectors to standard indoor fittings, choosing nickel-plated options ensures durability and protection against harsh elements.
Pioneer Power International is aware of these needs. We are one of the top cable glands manufacturers in India, and we are committed to making premium-quality brass parts that adhere to international safety regulations. Our Brass Cable Connectors collection is designed to give the robustness and dependability needed by your projects.
Ensure your facility is safe and compliant, choose Pioneer Power International for your cable management needs.

Frequently Asked Questions:

Are CW glands waterproof?

Indeed, CW glands are made to seal the outer sheath, thus they can be used in the outdoor scenario where the weather may affect the IP of the equipment if not protected.

Can I use brass glands on AWA cable?

Typically, brass glands are employed alongside Steel Wire Armor (SWA). Cables with Aluminum Wire Armor (AWA) usually call for aluminum glands to ward off galvanic corrosion. Nevertheless, nickel-plated brass glands may be used if insulated correctly, but aluminum is the material of choice for AWA in order to circumvent magnetic problems.

What is the difference between AWA and SWA?

SWA (Steel Wire Armor) can be applied only to multi-core cables where the magnetic field is cancelled out. AWA (Aluminum Wire Armor) is used for single-core cables since it is non-magnetic; thus, the armor will not heat up as a result of the magnetic field produced by the current.

What is the difference between M20 and M20s cable glands?

Both glands are designed to fit a standard 20mm hole/thread. Nevertheless, the letter 's' in M20s signifies 'small'. The M20s gland has a smaller inner seal capacity, which is specifically made to hold cables with a smaller outer diameter than the standard M20 gland can accommodate.
