Copper Bonded vs. Solid Copper: Why a Maintenance Free Earthing Electrode is the Smarter Choice

Electrical grounding often ranks as the least considered element in a building's safety plan; however, it is the very line of defense that fully prevents electrical accidents. The grounding rod's quality will decide the outcome of the electric surge, whether it is safely dissipated or causes large-scale destruction, when surges, short circuits, or lightning strikes take place.

For engineers and property owners alike, the debate often comes down to choosing the right material. The solution offered by the old ways is still there, but it is the new Maintenance Free Earthing Electrode that has placed itself as the superior choice, combining performance and longevity with a low price.

Copper Bonded vs Solid Copper Earth Rod: Understanding the Difference

When selecting a grounding rod, many buyers assume that "100% solid copper" is automatically the best choice. However, a direct Copper Bonded vs Solid Copper Earth Rod comparison reveals that when it comes to the realities of installation and durability, the situation is different.
While solid copper offers excellent conductivity, it has two major flaws:

It is extremely expensive, making it impractical for large projects.

It is physically soft, Failure to reach the desired depth happens when the installer bends or distorts the solid copper rod as he/she tries to drive it through hard or rocky ground.

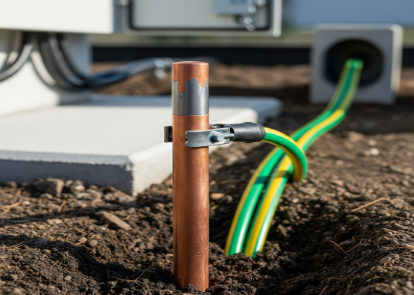

On the other hand, a copper bonded rod boasts a high-tensile steel core with a uniform layer of electrolytic copper applied to it as a coating. This construction provides the "best of both worlds": the conductivity of copper to handle current and the mechanical strength of steel to penetrate deep soil.

Key Advantages of a Maintenance Free Earthing Electrode

The transition from galvanized iron (GI) to copper bonded technology is based on the demand for reliability. A Maintenance Free Earthing Electrode is designed as a "fit and forget" solution. In contrast to the older systems which needed regular watering or salt treatments to keep the conductivity, these rods are designed for delivering stable performance without much human involvement.

Superior Fault Current Dissipation

The most significant function for any earthing system is Fault Current Dissipation. High-voltage current must be conducted into the ground immediately by the electrode during a fault condition. The copper bonded rods, which have a high-purity copper coating (usually 254 microns), provide a low-impedance path that loses these currents much more effectively than the standard steel pipes, safeguarding electrical equipment from burnout.

Ensuring your system meets safety requirements goes beyond just selecting the right electrode material. For a deeper understanding of the fundamental rules protecting your facility, we recommend reviewing the basics of grounding and bonding outlined by the NFPA.

Exceptional Corrosion Resistance

One of the main threats that Grounding System Safety faces is the oxidation that occurs underground. Traditional GI pipes can completely rust away within just a few years which would lead the electric connection to break without anyone knowing about it.

Copper bonded rods are also Corrosion Resistant. The molecular bonding technique guarantees that the copper layer will not come off or detach when inserted deep into the ground. This means that the core of steel is not in contact with water and acidic soil, thereby getting a lifetime that is around 20 to 30 years or more.

The Role of Soil Resistivity

The performance of a grounding system is not solely determined by the rods used; the environment also plays an important role. Soil Resistivity, which is the measure of the soil's ability to conduct electricity, depends largely on the soil's moisture and mineral content and can vary tremendously.

One of the main advantages of high-quality copper bonded electrodes is their adaptability. These rods have better contact resistance when compared to other kinds of installations in both hilly rocky areas or saline coastal cities. Together with a proper backfill compound, they will ensure that the resistance values are stable regardless of seasonal changes in the soil.

Trust Pioneer Power International for Your Connections

The selection of an earthing solution is a decision that prioritizes safety as its main concern. Solid copper is conductive but soft, while GI is strong but rusts easily; hence, copper bonded rods give the perfect balance of strong conductivity and durability.

Pioneer Power International is the one to turn to when looking for a trustworthy earthing solution. Our copper-bonded earthing rods are manufactured according to strict international standards, so your infrastructure will be protected from electrical faults for a long time. When you choose Pioneer Power International, you are choosing a foundation of safety that lasts.

Frequently Asked Questions:

Can copper bonded rods be installed in rocky or hard soil?

Yes, they are well-suited for such environments. Copper bonded rods feature a high-tensile steel core that provides the mechanical strength needed to penetrate deep soil. This prevents the bending or distortion that often happens when installers try to drive soft solid copper rods into hard or rocky ground.

How long does a maintenance free earthing electrode last?

The lifespan of a top-quality maintenance-free earthing electrode can vary from 15 to 30 years, depending on the thickness of the copper coating (usually around 250+ microns) and the prevailing soil condition in the area.

Why is copper bonded earthing better than GI earthing?

Copper bonded earthing is a better option than GI (Galvanized Iron) due to the fact that copper has a much higher electrical conductivity and corrosion resistance compared to GI. As a result, GI pipes will rust and deteriorate rapidly leading to high resistance and potential safety hazards over time.

Does soil resistivity affect the choice of earthing rod?

Yes, soil resistivity is indeed a very important aspect. In locations with high soil resistivity, the use of a very conductive copper bonded rod along with applying a ground enhancement compound is mandatory for getting the safe resistance levels.
