A Complete Guide to Earthing for Lightning & Grounding Systems

People often use the terms "earthing" and "lightning protection" interchangeably, but they are two distinct parts of a single, comprehensive system. Think of it as a two-part defense.

• Lightning Protection System: This is the external part of the system. It aims to catch a bolt of lightning. The air terminals (lightning rods) placed on the roofs and the down conductors that go down the building's side are its major elements.




• Earthing (Grounding) System:This part of the system lies underneath the surface. Its responsibility is to gradually distribute the dangerous electrical current caused by lightning into the earth without any risk. It is the last, crucial place for the lightning's power to go.

A lightning rod without a proper earthing system is useless. They must work together to create a complete and safe earthing and lightning protection system.

How Grounding is Used for Protection Against Lightning

A lightning protection grounding system offers a secure path with low resistance for the electrical charge to flow from the striking point to the earth.
Without this specified path, lightning would have to find its way, possibly through the steel structure of your building, electrical wiring, or plumbing. This is the reason for fire and electrical explosion occurrences.
The process works in three simple steps:

1. Interception: The air terminal is the highest point an incoming strike meets prior to striking the building.

2. Conduction: The massive current is safely guided from the conductor rod via the down conductors to the grounding channel.

3. Dispersion: This is where earthing for lightning comes in. The current flows into the earthing system (electrodes, mats) buried deep in the ground, which dissipates the energy harmlessly into the earth.

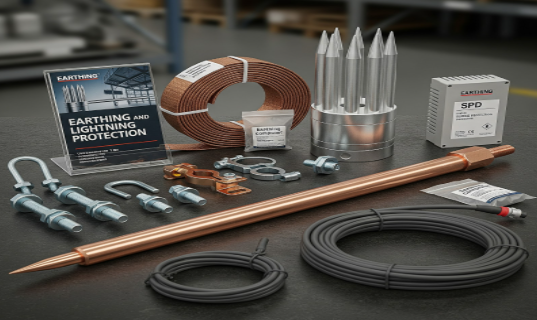

Key Components of an Earthing and Lightning Protection System

A complete Grounding and Lightning Protection System is more than just a single rod. It consists of several key components working in unison.

External Protection Components

• Air Terminals (Lightning Rods): These are the pointed metal rods that are very precisely and strategically positioned at the highest points of the structure in order to catch the lightning strike.

• Down Conductors: There are also heavy-duty cables (usually made of copper or aluminum) that complete the connection of the air terminals to the earthing system; these cables are the current "highway".

Earthing (Grounding) Components

• Earthing Electrodes:The main components that are buried under the ground consist of long metal rods (pipe earthing), buried metal plates (plate earthing), or a grid of buried conductors (mat earthing). These components have the function of coming into direct contact with the earth.

• Equipotential Bonding: This process includes the connection of all large metal parts in a building (such as water pipes, gas lines, and structural steel) to be part of the earthing system. This connection eliminates the possibility of dangerous voltage differences between the objects, thus preventing side-flashes.




Why a Professional Grounding and Lightning Protection System is Essential




The mere installation of a lightning rod does not provide complete protection. The effectiveness of an earthing for lightning system is totally dependent on a professional evaluation and design. The final design is influenced by factors such as soil resistivity, building height, and the type of equipment inside.
A poorly designed system can fail, providing a false sense of security while leaving the structure vulnerable to the very dangers it's meant to prevent. This might cause very high-cost equipment failure, fires, and serious safety risks.




Your Partner in Protection: Pioneer Power International




In order to know for sure that your building is completely secured against a lightning strike, you need an expert's insight and industrial-grade components. The whole protection system is a must-have investment if you want your property to be safe and last long.
For a robust, reliable, and expertly designed Earthing and Lightning Protection System, trust the specialists at Pioneer Power International. We evaluate what you need to create and put in place the latest technology solutions, so you can enjoy total reassurance and ground-level protection.





Frequently Asked Questions:

What are the 3 types of earthing?

Common installation methods for earthing include Pipe earthing, Plate earthing, and Rod (or Strip) earthing. These methods describe the type of electrode used to make a conductive connection to the ground. Electrical system standards also define three main system types: TT, IT, and TN.

What are the components of earthing and lightning protection?

An earthing system typically comprises an earth electrode (e.g., buried rod or plate) and an earth conductor connecting it to the electrical installation. A lightning protection system uses air terminals (rods) to intercept the strike, down conductors to carry the current, and an earthing system to safely dissipate the current into the ground.

How is grounding used for protection against lightning?

A lightning protection system utilizes its earthing component to safely channel the massive electrical current from a lightning strike via a low-resistance path, from the air terminal directly into the earth. This prevents damage to the building and its internal systems.

Difference between earthing and lightning protection system?

Earthing connects non-current-carrying metal parts of an electrical system to the ground for general safety, preventing shock and protecting against faults. A lightning protection system is specific, intercepting a direct strike and safely guiding its current to the ground. Earthing is necessary for a lightning protection system but is also an independent safety measure.
