What Is the Correct Way to Attach Copper Terminals to a Wire?

It is crucial to have a safe and efficient electrical connection for any project regardless of its complexity. Industrial applications require the same or similar methods as simple home wiring. Copper terminals, which might also be referred to as copper wire lugs, are the most reliable components for many strong connections.

Crimping is the correct way of attaching them, and it is an important skill that one has to learn. A connection that is not made well can cause power loss, heat generation, and even fire which can endanger the lives of people working or living in that area.

This step-by-step guide explains how to attach copper terminals properly in order to have a well-secured and trustworthy connection.

What Are Copper Terminals Used For?

Copper terminals are electrical connectors that are used to terminate (end) a wire and then connect it securely to an electrical device like a busbar, circuit breaker or another wire. The great conductivity of copper makes it possible for the copper terminal lugs to be used to make a path with very little resistance for the electrical current, thus guaranteeing the highest efficiency and safety.

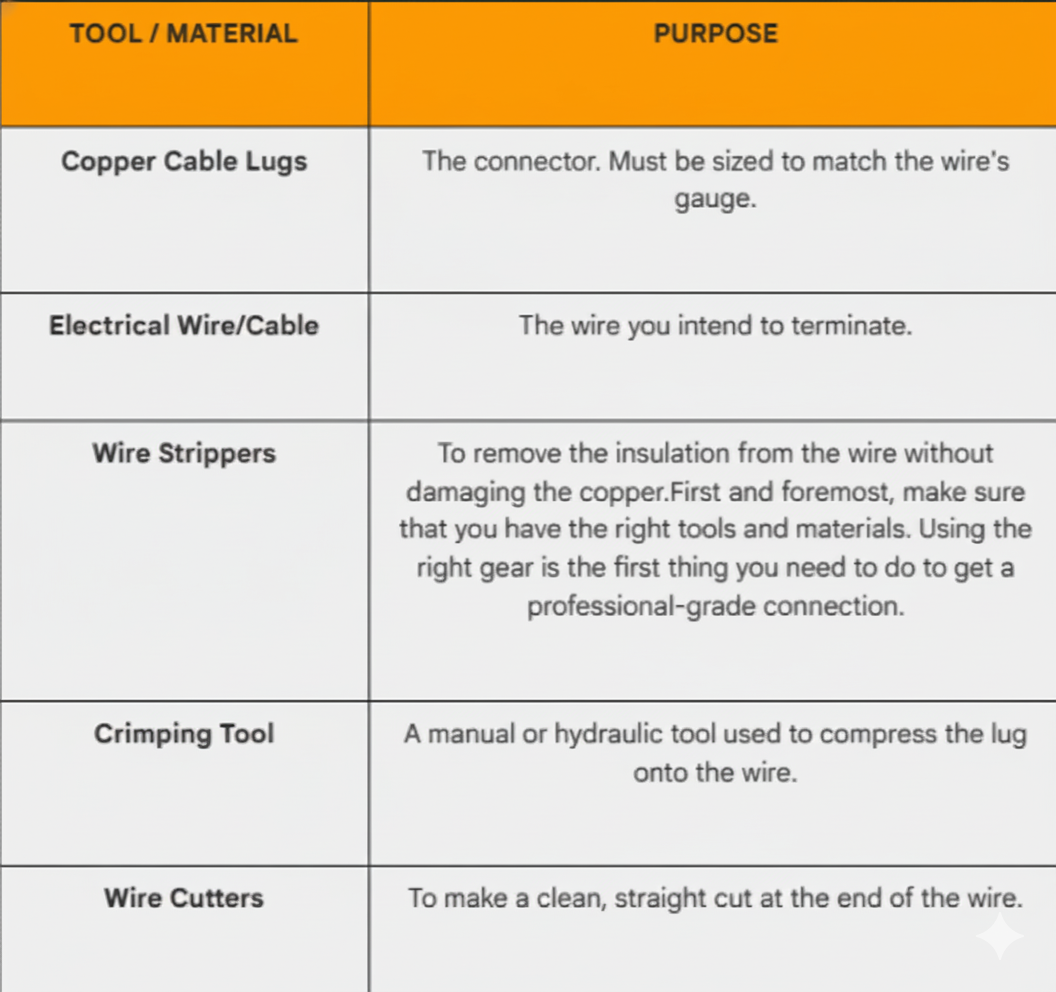

Tools and Materials Needed for Crimping

First and foremost, make sure that you have the right tools and materials. Using the right ear is the first thing you need to do to get a professional-grade connection.

A Step-by-Step Guide to Attaching Copper Wire Lugs

Follow these steps carefully to ensure a perfect crimp every time.

Step 1: Prepare the Wire

First, you need to make a clean, straight cut at the end of the cable. After that, remove the wire insulation using the wire strippers for exactly the amount you want. The length of the stripped wire should be the same as the depth of the copper lug barrel. During this whole process, be very careful not to cut the copper wire strands or damage them.

Step 2: Select the Correct Copper Lug

This is the most important step. You have to pick a lug that is rated for the size (gauge) of your wire. If you use a lug that is too large, you will have a loose connection and if too small, it will not fit. The information regarding copper cable lugs sizes is usually stamped on the lug itself. Furthermore, different applications may also demand specific copper cable lugs types like the copper lugs pin type or standard ring terminals.

Step 3: Insert the Wire into the Lug

The next step is to gently twist the copper strands that have been exposed so that they are tightly bundled together. This prevents any of the strands from getting loose and thus splaying. Afterward, the bundled wire strands are to be inserted completely into the barrel of the copper terminal lug. You can tell that the insertion has been done completely by peering through the small inspection hole (if there is any) on the lug. The insulation on the wire should be right against the end of the barrel of the lug but it should not go into the barrel.

Step 4: Crimp the Connection

Insert the barrel of the lug into the specific die of your crimping tool. According to the instruction manual of the tool, crimp the lug onto the wire. Generally, one or two crimps are done based on how much of the barrel is used. When adequately crimped, the lug and wire are together compressed, and a cold, solid-state weld is formed.

Step 5: Inspect the Crimp

It's necessary to perform a visual inspection to verify a good connection. The crimp should be perfect and have no breaks. The wire should not have any strands that are loose. Do a gentle tug on the wire and lug (this is sometimes referred to as a "tug test") to check that they are mechanically bonded and will not come apart.

Common Mistakes to Avoid When Attaching Copper Terminals

Incorrect Lug or Die Size: Using the wrong size lug or crimping die is the most common failure.

Under-Crimping: This leaves the connection loose, creating high resistance and heat.

Over-Crimping: This can damage or break the wire strands and the lug itself.

Improper Wire Insertion: Not inserting the wire fully into the barrel results in a weak and inefficient connection.

If you want to know more about best practices, it's helpful to review external guides on perfecting your crimping process

Trust Pioneer Power International for Your Copper Cable Lugs

Correct and safe electrical connection is the result of a combination of the right technique and high-quality components. The technique was covered in this guide, however, the quality of your copper terminals is of equal importance.

For components you can trust, Pioneer Power International offers a comprehensive range of premium copper cable lugs. Our lugs are manufactured for excellent conductivity and durability, thus ensuring that all the connections you make are safe, trustworthy, and long-lasting. For your next project, opt for Pioneer Power International and be sure of the quality of your electrical connections.

Frequently Asked Questions:

What tools are essential for attaching a copper lug?

You will need a wire cutter for a clean cut , wire strippers to remove insulation , and a high-quality crimping tool. The crimper must be the correct type and size for the lugs you are using.

When is aluminum a better choice than copper for connectors?

Aluminum is more often preferred than copper for the power transmission of large scale and long distances. Despite being a poor conductor, aluminum is lighter and cheaper than copper, hence it is still a more efficient and economical choice for overhead high-voltage lines.

What's the purpose of the small inspection hole on some lugs?

The inspection hole enables you to check visually that the wire has been put fully into the barrel before crimping it. Correct insertion is very important for having a strong and trustworthy connection.

What's the difference between a ring lug and a pin-type lug?

A standard ring lug (or terminal) has a round end for connecting to a busbar or a threaded stud. A pin-type lug wraps up the wire into a solid pin that is meant to be inserted into specific types of terminal blocks.
