Copper Lug Sizing Guide: How to Match Cable Gauge to Stud Size

The process of choosing electrical components is sometimes more complicated than it looks. For high-current applications, selecting the right copper terminal lugs is not just about convenience, it is a major safety necessity. The reason is that a loose connection or a bad fit between the cable and the lug can result in high resistance, voltage drop, and very dangerous overheating.
Having the right copper lugs sizes whether for industrial machinery installation or renewable energy system setup will guarantee your connection is durable. The following guide contains an all-inclusive copper lug size chart and efficient steps to quickly match your wire gauge to the proper stud size.

Copper Lug Size Chart: Cable to Stud Matching

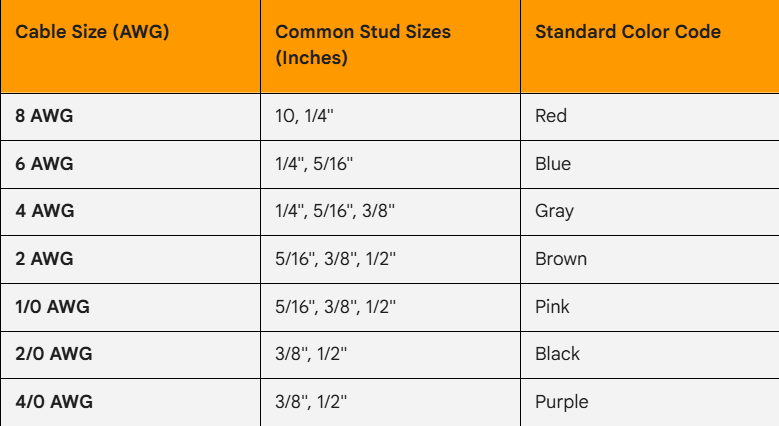

Utilize the following chart for associating your American Wire Gauge (AWG) cable with the correct stud (bolt) size. Be aware that the standard color coding in the industry is mostly applied on copper compression lugs to signify the die needed for crimping.

Why Proper Sizing is Critical for Safety

The effectiveness of copper compression lugs is entirely dependent on the crimping process and the mechanical bond that is made. In case of wrong sizing, the "cold weld" that is crucial for the best conductivity cannot occur.

Oversized Lugs:

In case the barrel is too large for the cable, the crimping tool will not compress the wire strands up to the required extent. This very thing permits the formation of "air gaps" inside the barrel that cannot be seen with the naked eye. The existence of air inside that area is the reason why oxidation occurs, which in turn, over time, increases the resistance and ultimately leads to melting or failure of lug under load.

Undersized Lugs:

Inserting a thick wire into a too-small barrel often leads to the breaking or peeling back of the strands. The effective reduction of the wire's diametric measurement (gauge) at the connection point is created, this bottlenecking of current flow generates heat and thus, the situation where the heat produced is more than the wire can handle, occurs.

Incorrect Stud Holes:

The flat "palm" part of the lug is meant for the current to be transferred to the busbar or terminal. In case you use a lug that has a 1/2" hole and place it on a 1/4" bolt, you have drastically reduced the contact surface area. Such a loose fit can cause the connection to become loose due to vibrations, which is one of the leading causes of electrical fires in automotive and marine applications.

In order to comprehend the safety aspect of using the right gauge fully, it is highly suggested to go through this Wire Gauge and Ampacity guide compiled by the Universal Technical Institute. It elucidates the physics behind the American Wire Gauge (AWG) system and the consequences of improper sizing, that is, overheating and system failure.

Navigating Copper Lugs Types: Heavy Duty vs. Standard

Before finalizing your purchase, it is vital to distinguish between the different copper lugs types available on the market. The sizing is not only about the diameter of the hole but also about the thickness of the lug's wall.

Standard Duty Lugs:

These are thinner and typically used for static, low-vibration applications like household wiring panels. They are easier to crimp; however, they are not as durable as the heavier ones when it comes to providing support against mechanical stress.

Heavy Duty Lugs:

They usually have a thicker copper wall and are the type used for industrial, marine, or automotive battery banks. The thick wall, however, requires a larger die setting on the crimper, and this means less vibration resistance, but more conductivity. If you try to crimp a heavy-duty lug with standard settings, the result may be an under-crimped connection.

Additionally, there are copper mechanical lugs, which are another option that functions by the use of a set screw to hold the wire instead of a crimp. They can save time during maintenance, but they need specific torque settings in order to keep the wire from loosening with time.

Step-by-Step: How to Measure Your Cable for the Perfect Fit

In case the insulation of your cable is either very old or already badly damaged, it is quite possible that you are unable to read the AWG printing. The following steps will help you to manually size your system so that you can order the right copper terminal lugs:

Strip the Insulation:

Remove about one inch of insulation to expose the bare copper strands.

Measure the Diameter:

Use a digital caliper to measure the diameter of the bare conductor bundle. Do not include the insulation in this measurement.

Compare to a Chart:

The first step is to cross-reference your measurement (given in either inches or millimeters) with a standard AWG diameter chart. For instance, a diameter of about 0.36 inches typically corresponds to a 2/0 AWG cable.

Check the Stud:

Next, measure the threaded diameter of the bolt or terminal stud that you intend to connect to. It is always better to have a tight fit (e.g., a 5/16" lug on a 5/16" bolt) than a loose one.
