When to Use Ring Type or Pin Type Aluminum Compression Lugs for Your Connections

In the field of electrical engineering, the reliability of a connection is of utmost importance. The proper termination method selection is a must for safety and efficiency, whether you are operating a large industrial power distribution system or a small commercial project.
Nonferrous metals and alloys like aluminum are widely used in electrical applications due to their favorable characteristics. Aluminum compression lugs, in particular, have become the expected standard for a secure and durable bond, but a common dilemma for workers is whether to opt for a ring type or a pin-type lug.
This guide outlines the differences between them, thus facilitating the selection of the most suitable aluminum wire lugs for your particular application.

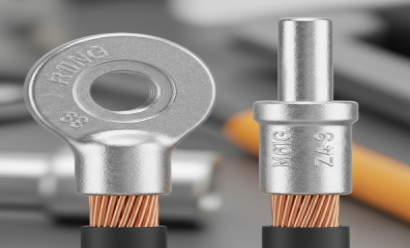

Understanding the Basics: Ring vs. Pin Type

While both types serve the fundamental purpose of terminating a conductor, their designs cater to different connection environments.

Key Features of Aluminium Lugs Ring Type

Aluminium lugs ring type are characterized by a circular hole (the "ring") at the termination end.

Secure Connection:

The closed ring design allows a screw or bolt to pass through, ensuring the lug cannot be pulled off the stud once tightened.

Surface Area:

They typically offer a wider contact surface area, which is excellent for conductivity and heat dissipation.

Vibration Resistance:

Because they are bolted down, they are highly resistant to loosening caused by vibration.

When to Choose Aluminium Pin Type Lugs

Aluminium pin type lugs feature a solid pin that mimics the shape of a wire.

Terminal Blocks:

These are specifically designed for terminating cables into mechanical terminal blocks or circuit breakers that are designed to accept a round wire or pin.

Prevents Strand Damage:

Using a pin lug prevents the splaying of aluminum wire strands, which can occur if you try to insert a bare stranded cable directly into a tunnel connector.

Ease of Insertion:

They slide easily into push-in or screw-down tunnel terminals where a bolt connection is not available.

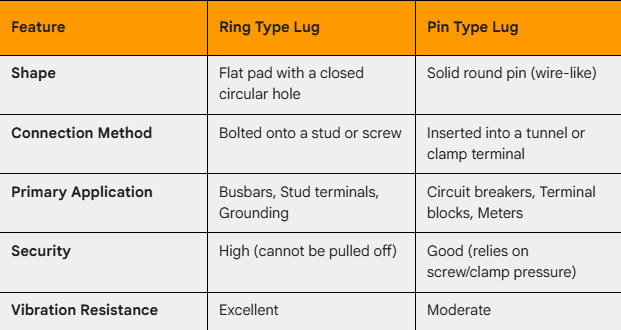

Quick Comparison: Ring vs. Pin Type Lugs

To help you decide quickly, here is a side-by-side comparison:

Sizing and Selection

Regardless of the shape, size is critical. Using an incorrect size can lead to "hot spots" and eventual failure. It is extremely important to refer to an aluminium cable lugs size chart before making any purchase. This way, you can be certain that the barrel of the lug is precisely compatible with the conductor's gauge.
Moreover, safety compliance is a must. It is prudent to evaluate whether the components being procured meet internationally recognized safety standards, such as the ones approved by UL Connector Certification Services, to assure dependability in critical infrastructure.

Trust Pioneer Power International for Your Connections

Ultimately, the choice between aluminium pin type lugs and ring type lugs depends on your equipment. If you are connecting to a stud or busbar, the ring type is your best option in terms of security. If you are terminating into a circuit breaker or terminal block, the pin type is probably required.
At Pioneer Power International, we understand the nuances of electrical connectivity. We manufacture high-quality, durable Aluminium lugs designed to withstand the rigors of industrial use. It does not matter if you require accurate aluminium lugs ring type for secure bolting or the flexible pin types for your panels, our products are all made for outstanding performance.
Ensure your power flows uninterrupted. Choose Pioneer Power International for reliable, certified electrical solutions.

Frequently Asked Questions:

Can we use aluminium lugs for copper cable?

Standard aluminum lugs are specifically made for aluminum conductors and should not be paired with copper due to the potential of corrosion. On the contrary, dual-rated lugs (indicated as AL/CU) are certified and tin-plated for the use of both copper and aluminum wires.

How long do aluminium lugs last?

With the assistance of correct installation, proper compression tools, and oxide inhibitors, aluminum lugs have a remarkably high longevity. Their life span can be around 30 years or even longer, often equal to that of the electrical system itself with little or no degradation.

What is the HSN Code and GST rate for Aluminium Lugs?

n the Indian market, Aluminium cable lugs are usually categorized under the HSN Code 8536 (more specifically 85369090 for electrical apparatus). These electrical components are currently subjected to a standard Goods and Services Tax (GST) rate of 18%.

What is the difference between Crimping Lugs and Compression Lugs?

Compression lugs leverage a die-based tool to hex-crimp the barrel, thus forming a solid, void-free mass that is perfect for high-current industrial applications. The term "Crimping" is broader and can be understood as simple indentations, but for high-integrity aluminum connections, compression is still the preferred method.
