How Can Marine Cable Glands Shield Cables at Entry Points?

Cable entry points may be small, but they connect the cable directly with the enclosure and surrounding environment. In marine installations, this area can experience humidity, salt-laden air, vibration and repeated cable movement. Marine Cable Glands create a controlled connection around the cable entry, helping secure the cable while supporting the enclosure's sealing requirements.
A marine cable gland is not effective simply because it fits into an enclosure. Its performance depends on factors such as cable diameter, sealing range, thread size, material and installation method. When these elements are properly matched, the gland can help create a more stable cable entry and reduce unwanted movement or environmental exposure.

How Can Marine Cable Glands Shield Cables at Entry Points?

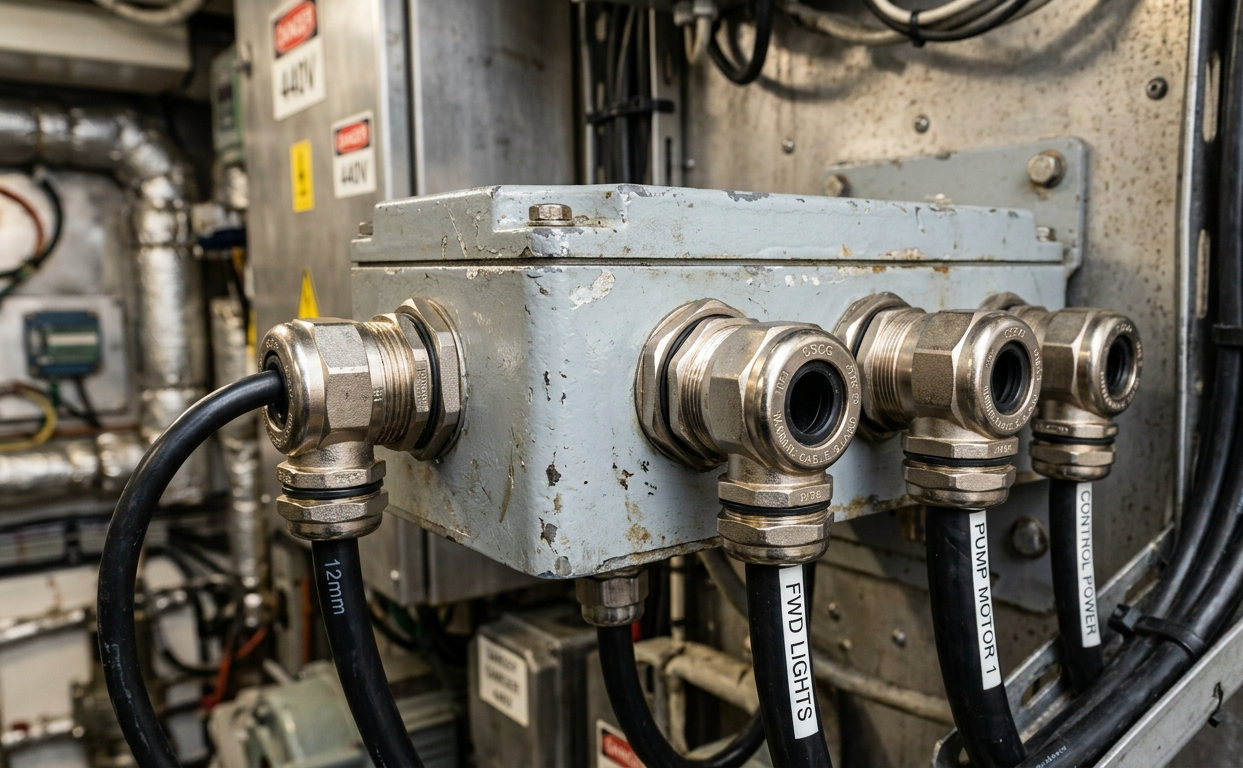

A cable gland surrounds the cable where it passes through an enclosure, creating a defined interface between the cable and equipment. Its sealing arrangement can help restrict pathways around the cable, while the gland body provides a secure connection with the enclosure.
This makes Marine Cable Glanduseful where cables enter control panels, junction boxes, electrical cabinets and other equipment. Their role is not limited to sealing; they can also help keep the cable properly positioned at the entry. However, the cable should still be adequately supported so that its weight and movement do not place excessive force on the gland.

Why Can Cable Entry Points Become Vulnerable?

Marine equipment operates in conditions that can place additional demands on cable-entry components. Vibration from machinery may cause repeated cable movement, while moisture and salt-containing air can affect exposed surfaces. Cable routing can also create bending or pulling forces close to the enclosure.
Marine Electrical Cable Glands provide a structured entry instead of allowing the cable to pass through an unrestricted opening. Choosing the gland according to the cable construction and operating environment is therefore important for achieving the intended installation performance.

How Does a Marine Cable Gland Manage Cable Movement?

A gland helps establish a fixed point where the flexible cable enters the enclosure. Its sealing mechanism grips the cable, while the body connects it to the equipment. This arrangement can reduce unnecessary movement around the entry when correctly installed.
The gland should not, however, be treated as a replacement for proper cable support. Larger cables, long cable runs and equipment exposed to vibration may require additional support before the cable reaches the enclosure.
Three basic checks are particularly useful:

Cable diameter and gland sealing range

Correct installation and tightening

Suitable support and routing near the entry

Why Must the Gland Match the Cable?

A gland may have the correct enclosure thread and still be unsuitable for the cable. The cable must fall within the gland's specified sealing range so that the sealing component can work as intended.
This is especially important where different cable sizes enter the same panel. Marine Cable Glands should therefore be selected according to the cable's actual outside diameter, construction and application rather than relying only on the enclosure thread.

How Does Cable Construction Affect Gland Selection?

Cable construction can change the type of gland required. Armoured cables need consideration of their armour arrangement as well as their overall diameter. Armoured Marine Cable Glands are intended for applications where the gland must accommodate the relevant armoured cable construction.
Unarmoured cables have different sealing and retention requirements. Identifying the cable type before selecting the gland helps reduce compatibility issues. The cable diameter, enclosure thread and required protection level should then be checked against the manufacturer's specifications.

Can Brass Cable Glands Be Used in Marine Applications?

Material selection is another important consideration. BRASS CABLE GLANDS are commonly used in electrical installations because brass provides a robust metallic construction and is available in various configurations.
A Marine Brass Cable Gland may be suitable when its material and specifications match the application. Brass Marine Cable Glands can be considered for different marine electrical installations, but environmental exposure should still be evaluated. Surface treatment, corrosion requirements and surrounding conditions may influence the final choice.
Where the installation requires additional environmental resistance, a Corrosion Resistant Cable Gland can be considered according to the project's technical requirements.

Can a Waterproof Marine Cable Gland Improve Sealing?

A Waterproof Marine Cable Gland can contribute to moisture protection when its sealing range, cable compatibility and installation method are appropriate. However, the gland cannot compensate for an incorrectly sized cable or poorly installed sealing component.
The required ingress protection should therefore be checked along with the cable and enclosure specifications. Correct tightening and installation are also important because the intended protection depends on the complete cable-entry arrangement rather than the gland alone

What Role Do Marine Electrical Cable Fittings Play?

A gland may be used together with other components to complete a cable-entry assembly. Marine Electrical Cable Fittings can include locknuts, earth tags, washers, shrouds and other compatible accessories.
For armoured installations, additional components may be needed to address armour continuity and earthing requirements. For other cables, the main consideration may be sealing and mechanical retention. Selecting compatible accessories helps create a more complete and properly matched entry arrangement.

What Should Buyers Check Before Selecting a Gland?

Before ordering, buyers should consider the cable, enclosure and operating environment together. The most useful checks include:

Cable:Confirm diameter, construction and armour type if applicable.

Enclosure:Verify the thread size and available installation space.

Environment:Consider moisture, salt exposure, vibration and temperature.

Protection: Check the required ingress protection and manufacturer's specifications.

These checks help prevent the common mistake of selecting a gland simply because it appears to fit.

Why Choose Pioneer Power International?

Selecting cable-entry hardware becomes easier when the supplier offers options suited to different cable sizes, constructions and installation requirements. Pioneer Power International provides electrical hardware solutions for cable connection and termination applications, including products relevant to marine cable-entry requirements.
For customers looking for Marine Cable Glands, Marine Brass Cable Gland, BRASS CABLE GLANDS, armoured configurations or related Marine Electrical Cable Fittings,Pioneer Power International offers options that can be evaluated according to the cable and application specifications.

How Can Better Gland Selection Improve Cable Entry?

A cable gland is a small component, but its position makes it an important part of the overall electrical installation. The right selection considers the cable, enclosure, material, environment and installation method together.
When these factors are correctly matched, marine cable gland selection can support a more secure and controlled cable entry. For marine electrical systems, this approach helps ensure that the gland is not merely a fitting at the enclosure but a properly considered part of the complete cable installation.

Frequently Asked Questions:

How do Marine Electrical Cable Glands protect cable entries?

Marine Electrical Cable Glands help manage the point where a cable passes into equipment by combining cable retention with sealing. The actual protection depends on the gland design, cable dimensions, installation method and specified ingress protection rating.

How do I select the right marine cable gland size?

The gland should be selected according to the cable's actual outside diameter and construction, not only the enclosure thread. The cable should fall within the manufacturer's specified sealing range. Thread type, installation space and environmental conditions should also be checked before selection.

Why are BRASS CABLE GLANDS used for cable entries?

BRASS CABLE GLANDS provide a robust metallic cable-entry construction and are available in different configurations for various cable applications. The appropriate brass gland should still be selected according to cable type, dimensions, environmental exposure and equipment requirements.

What are Marine Electrical Cable Fittings?

Marine Electrical Cable Fittings are components used to connect, secure or complete cable-entry arrangements in marine electrical installations. Depending on the gland and application, they can include compatible locknuts, earth tags, washers, shrouds and other accessories.

Are Brass Marine Cable Glands resistant to corrosion?

Brass Marine Cable Glands can be used in marine environments when their material and finish are appropriate for the application. However, corrosion performance should not be assumed from the word “brass” alone; the specific alloy, plating or finish and environmental conditions should be checked.
