Understanding Aluminium Tubular Cable Lugs: Types, Dimensions, and Uses

In the complex world of electrical engineering, the reliability of an entire power distribution network often hinges on its smallest components. Among these, the humble connection point serves as a critical junction where safety meets efficiency.

Be it a large-scale industrial power network, domestic wiring or commercial electrical installations, the choice of Aluminium Tubular Cable Lugs still remains as the most critical factor for safety, efficiency, and life span. Here we will delve into the technical details, different varieties, and basic measurements of these connectors that are important for electrical engineers and electricians to have the knowledge for the best installation.

The Importance of Precision in Aluminium Cable Termination

Aluminium Cable Termination is not solely the process of connecting a wire to a terminal but rather the establishment of a continuous, low-resistance electrical current path. Aluminium proves to be a good choice for conductivity and weight reduction but gives the user some challenges when compared with copper.
The formation of the oxide layer is the most significant problem, which is the non-conductive layer that forms almost immediately when aluminium is exposed to oxygen. The other difficulty related to aluminium is its softer nature and the fact that it undergoes "cold flow" or creep, that is, the tendency to deform under constant pressure over time.

The use of high-quality tubular lugs is one of the most effective ways to deal with these problems. They not only give a secure and gas-tight connection that stops oxidation in the joint but at the same time maintain pressure that fights cold flow. The use of low-quality lugs increases resistance, produces heat, and causes arcing, which may lead to complete failure of the system. For the professionals who deal with strict safety regulations like those provided by UL Solutions, using the right lug is a must for compliance and long-term reliability.

Exploring Key Aluminium Lugs Types

Not all connections are the same in terms of quality and performance. The selection of the aluminium lugs types will be different depending on the case, whether it is the transformer connection, generator termination, or switchgear installation. Understanding these distinctions is key to preventing mismatches that compromise safety.

Standard vs. Heavy Duty Aluminium Lugs

The low-voltage standard barrel lugs are often used in general applications where there is little or no mechanical stress. They provide an excellent combination of conductivity and simplicity of installation.

On the other hand, when the environmental conditions are such that there is high mechanical stress, vibration, or extreme weather, Heavy Duty Aluminium Lugs are the best option. These lugs have walls that are more than regular ones and have robust barrels to endure higher vibration and thermal shock without losing the quality of the electrical connection. They are used in places such as outdoor substations and heavy industrial machinery where long-lasting products are a necessity.

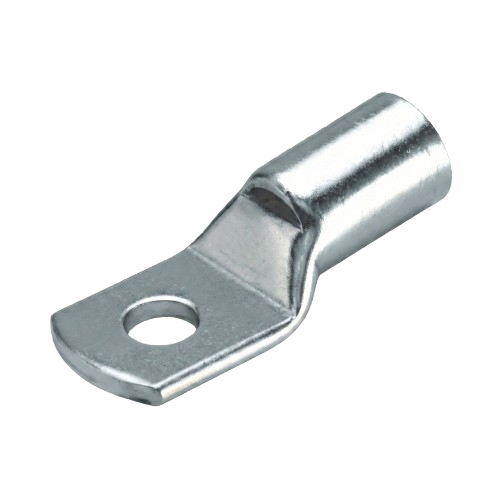

Aluminium Barrel Lugs

The Role of Aluminium Barrel Lugs

Aluminium Barrel Lugs is one of the most commonly utilized and dependable types of alloys. In contrast to mechanical lugs that depend on the screws or nuts to maintain the conductor, these lugs are attached to the conductor by crimping with special hydraulic or manual machines.

The process of crimping produces a single mass that combines the strands of the cable and the lug barrel. The process of deformation removes the oxide layer (often with the aid of a jointing compound) and gives a permanent bond. This connection is made with very low contact resistance and the risk of the connection loosening over time due to thermal cycling or vibration is virtually zero.

Decoding Aluminium Lugs Dimensions

Choosing the right lug is frequently an issue of very precise geometry. Aluminium Lugs Dimensions must exactly correspond to both the cable gauge and the mounting stud. A too-large barrel might result in weak crimps with air pockets, while a too-small stud hole could either make installation impossible or necessitate dangerous alterations.
Key dimensional factors to consider include:

Barrel Length: This dimension determines the number of crimps required. Longer barrels allow for multiple crimps, offering greater mechanical pull-out strength and better electrical contact area.

Stud Hole Size: This must correspond exactly to the bolt size of the equipment terminal (e.g., M8, M10, M12). A loose fit can lead to poor contact, while a tight fit may damage the thread.

Palm Width: The width of the palm ensures adequate contact surface area for heat dissipation. A palm that is too narrow may overheat under high current loads.

Internal Diameter (ID): The ID must fit the conductor strands snugly. If the gap is too large, the compression will not be effective; if it is too small, the cable strands may be damaged during insertion.

Trust Pioneer Power International for Your Connections

The reliability of an electrical system depends solely on its weakest link. Through comprehending the subtle differences in types, dimensions, and specific difficulties associated with aluminium termination, you can make sure that your projects are always powered up with safety and efficiency.

Pioneer Power International takes this matter very seriously. As a top manufacturer and exporter, we offer a wide selection of Aluminium Tubular Cable Lugs that are fully compliant with the strictest global requirements. Our products are designed to be precise, durable, and highly conductive, thus making your electrical terminations safe and secure. No matter if you need standard sizes or heavy-duty options, you can rely on Pioneer Power International to provide the excellence that your infrastructure needs.

Frequently Asked Questions:

Do I need to use an oxide-inhibiting compound with Aluminium Tubular Cable Lugs?

Yes, it is highly recommended. Aluminium surfaces oxidize quickly when exposed to air, which can increase resistance. Applying a jointing compound before crimping ensures a secure Aluminium Cable Termination by breaking down oxide layers and preventing moisture ingress.

Can I connect Aluminium Tubular Cable Lugs directly to copper busbars?

Direct connection can lead to galvanic corrosion due to the dissimilar metals. To safely connect aluminium lugs to copper terminals, you should use bi-metallic washers or transition plates, even if you are using high-quality Aluminium Tubular Cable Lugs, to prevent long-term failure.

What is the correct crimping sequence for Aluminium Compression Lugs?

For effective installation, you should typically start crimping from the palm end (the flat part) and work your way toward the cable insulation. This prevents air pockets and ensures the Aluminium Compression Lugs elongate correctly without stressing the conductor strands.

Why is "cold flow" a concern in Aluminium Cable Termination?

"Cold flow" or creep refers to aluminium's tendency to deform under constant pressure over time, which can loosen connections. Using the correct lug dimensions and proper crimping pressure helps mitigate this, ensuring the termination remains tight without needing constant retightening.
